FB Series (Full Bridged)
The “Fire Breathing” Class D Full Range Micro Sized Mono block FB amplifiers from Hosun are designed to produce maximum power for the ultimate audio systems with the most efficient and stable power supply ever designed.
FB amps can handle loads as low as 1 Ohm and deliver “thousands” of RMS power at Full Range. FB amps are a series of Micro Sized Full Range Mega Amplifier allowing customers to utilize huge amounts of power in small areas.
Onboard Fans help keep this power house cool while other features like Clip Indictors and Hi-Low via RCA inputs and Band Pass Crossover Settings make this one of our most impressive and powerful amplifiers to date!
Features
· Extreme power in a small footprint
· 1 Ohm stable design (Mono Amps)
· Mil spec double sided & 2 layers PCB design with SMD parts
· Built-in noise reduction circuitry
· Full MOSFET with high grade switching devices
· 0~10DB variable bass boost
· Next generation advanced 5 way protection circuitry
· Built-in strong fans for excellent cooling
· With bandpass adjustment
· Full range frequency response is 10Hz-20KHz
| MODEL | FB1000.1 | FB2000.1 | FB3000.1 | FB5000.1 | FB8000.1 | FB12000.1 | FB300.2 | FB300.2 Plus | FB300.4 | FB300.4 Plus |
| 1OHM RMS 1% THD | 1000W*1 | 2000W*1 | 3000W*1 | 4800W*1 | 7500W*1 | 12000W*1 | N/A | 500w*2 | N/A | 500w*4 |
| 2OHM RMS 1% THD | 800W*1 | 1250W*1 | 2000W*1 | 3000W*1 | 3900W*1 | 6500W*1 | 300W*2 | 300W*2 | 300W*4 | 300W*4 |
| 4OHM RMS 1% THD | 450W*1 | 650W*1 | 950W*1 | 1600W*1 | 2100W*1 | 3300W*1 | 200W*2 | 200W*2 | 200W*4 | 200W*4 |
| SIZE(mm) | 159*191*66 | 200*191*66 | 230*191*66 | 270*191*66 | 340*191*66 | 450*191*66 | 190*191*66 | 190*191*66 | 230*191*66 | 230*191*66 |
| SIZE(inch) | 6.2*7.52*2.6 | 7.9*7.5*2.6 | 9*7.5*2.6 | 10.6*7.5*2.6 | 13.4*7.5*2.6 | 17.7*7.5*2.6 | 7.4*7.5*2.6 | 7.5*7.5*2.6 | 9*7.5*2.6 | 9*7.5*2.6 |

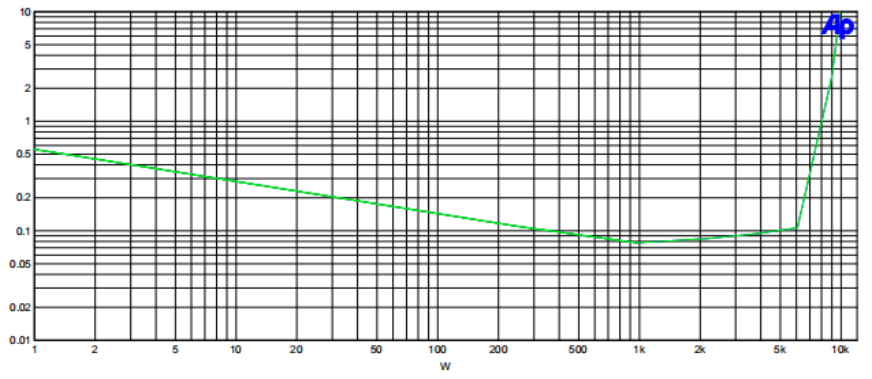

FB2000.1(1OHM)

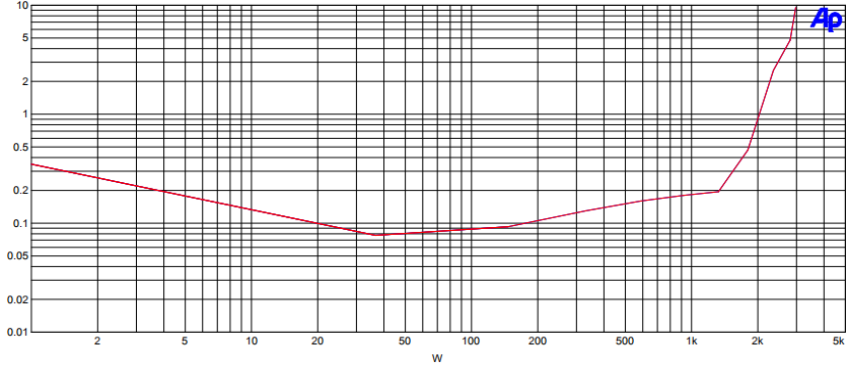

FB3000.1(1OHM)

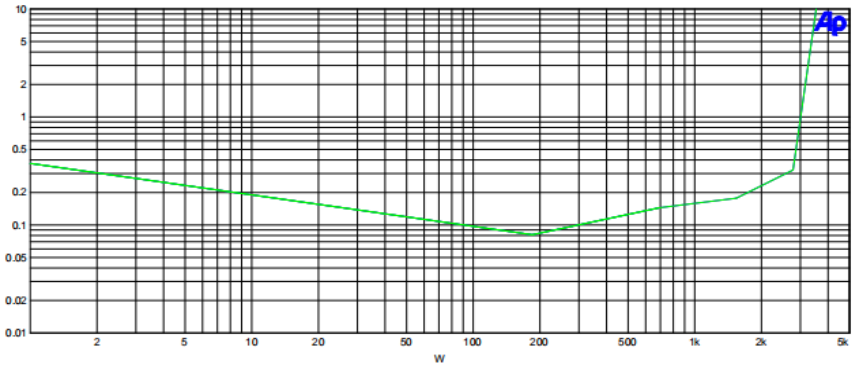

FB5000.1(1OHM)
FB8000.1(1OHM)
