SFB Series(Smart Full Bridged)

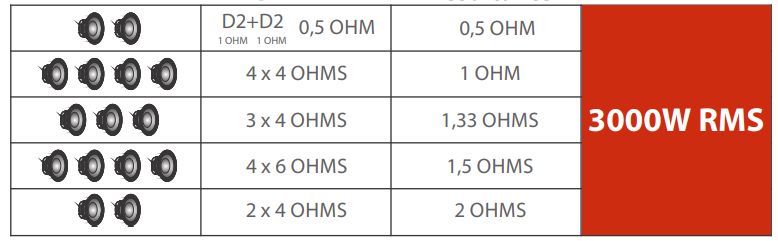

The pioneer of a series developed by Hosun with breakthrough technology in performance for car audio systems. Its biggest feature is its multi-impedance function that allows it to operate between 1 to 2 ohms, besides that, the Power Control System technology ensures greater performance and safety.
SFB Smart amplifiers are latest and greatest intelligent full bridge amplifier, the SFB serie’s power supply is built stronger, heatsink is heavier, and the SFB smart serie’s feature intelligent low voltage technology protecting the amplifier from typical full bridge malfunction. The SFB series also runs cooler because of latest fan upgrades.
· Features
o NUMBER OF CHANNELS : 1 CH
o MAX OUTPUT POWER : 14.4VDC - 1 OHM :1750W RMS
o INPUT SENSITIVITY : 200MV
o SIGNAL TO NOISE RATIO 108 DB
o FREQUENCY RESPONSE: 10HZ 20KHZ (-3DB)
o CROSSOVER :
o HPF: 10 TO 1KHZ (-12DB/8) VARIABLE
o LPF: 40HZ TO 20KHZ (-12DB/8) VARIABLE
o BASS BOOST : 0 TO 12DB (50HZ)
o THERMAL MANAGMENT ; SMART COOLER ( FAN POWERED BY TEMPERATURE OR AUDIO, WITH 3 SPEEDS)
o INPUT IMPEDANCE: 56K OHMS
o PROTECTION SYSTEM ; OUTPUT SHORT / HIGH /LOW SUPPLY VOLTAGE / THERMAL PROTECTION
o MINIMUM SUPPLY VOLTAGE : 9VDC
o MAXIUM SUPPLY VOLTAGE : 16VDC
| MODEL | SFB1250.1 | SFB1800.1 | SFB2500.1 | SFB3500.1 |
| 1OHM RMS 1% THD | 1250W*1 | 1800W*1 | 2500W*1 | 3500W*1 |
| 2OHM RMS 1% THD | 1250W*1 | 1800W*1 | 2500W*1 | 3500W*1 |
| 4OHM RMS 1% THD | 660W*1 | 950W*1 | 1500W*1 | 2000W*1 |
| SIZE(mm) | 205*191*66 | 205*191*66 | 230*191*66 | 230*191*66 |
| SIZE(inch) | 8*7.5*2.6 | 8*7.5*2.6 | 9*7.5*2.6 | 9*7.5*2.6 |

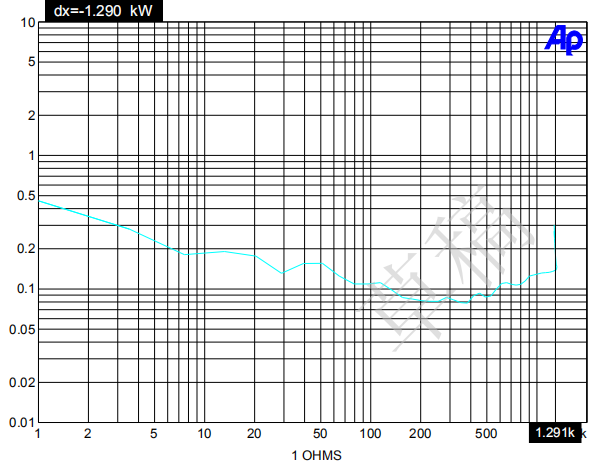

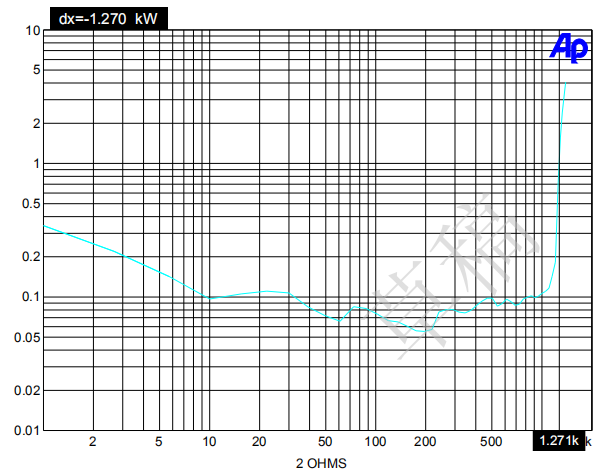

SFB1250.1 (1&2OHM)

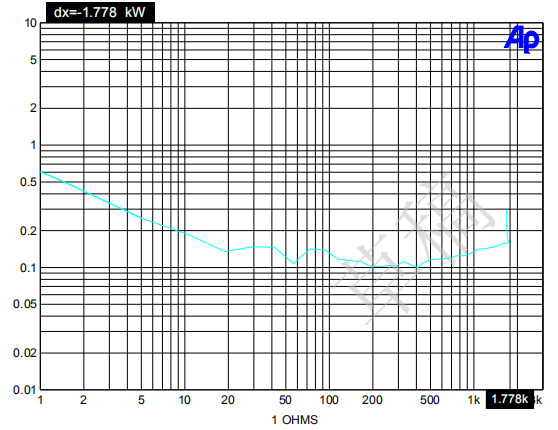

SFB1800.1(1&2OHM)

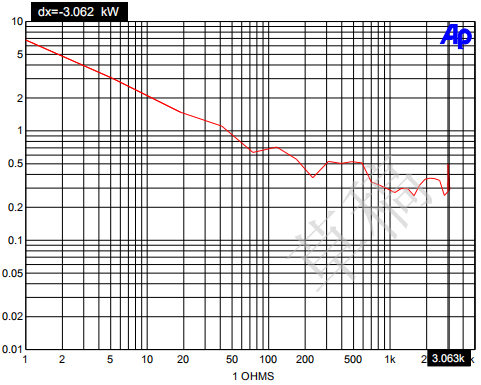

SFB3000.1 (1&2OHM)
